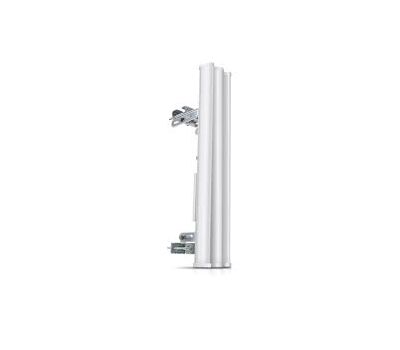

Ubiquiti airMAX ac sector AM-5AC22-45 5 GHz 2x2 MIMO Antenna, 22 dBi 45 Degrees

The airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point-to-MultiPoint (PtMP) networks. As the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios.

Key Features

• Advanced Noise Immunity
• Superior Beam Performance
• Enhanced Scalability of airMAX® Networks

Product Specifications
• Dimensions: 750 x 215 x 94mm (29.53 x 8.47 x 3.70″)
• Weight: 6kg (13.23lbs)
• Frequency Range: 5.10 – 5.85GHz
• Gain: 22dBi
• HPOL Beamwidth: 45° (6dBi)
• VPOL Beamwidth: 45° (6dBi)
• Electrical Beamwidth: 4°
• Electrical Downtilt: 2°
• Max. VSWR: 1.5:1
• Wind Survivability: 200km/h (125mph)
• Wind Loading: 347N @ 200km/h (78lbf @ 125mph)
• Polarization: Dual-Linear
• Cross-Polarization Isolation: 30dB Min.
• ETSI Specification: EN 302 326 DN2

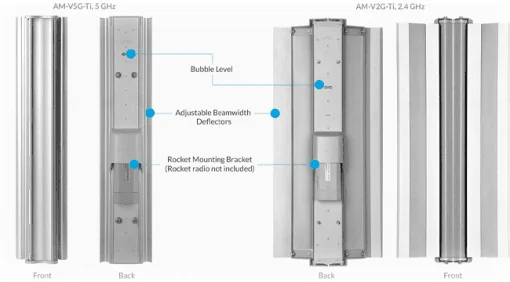

• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
