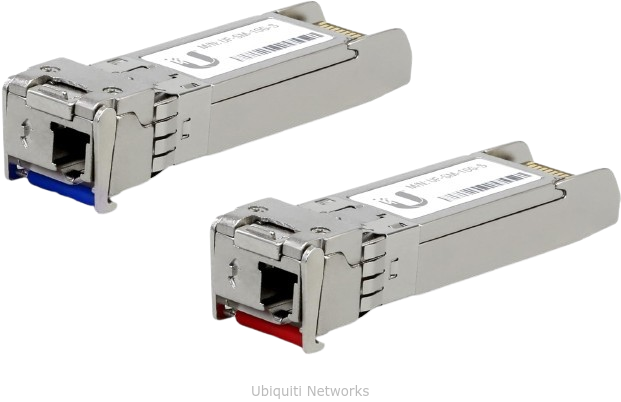

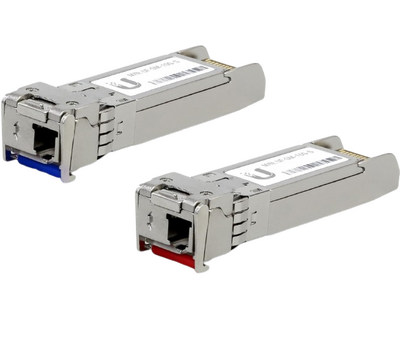

Ubiquiti U-Fiber UF-SM-10G SFP/SFP+ Module (2pack)
Save
6%
6%
Hover over an image to enlarge
Please sign in so that we can notify you about a reply
Description
https://dl.ubnt.com/datasheets...
About this item
- Ubiquiti Network UF-SM-10G-S SFP Single-Mode Fiber 1.25 Gbps SFP Module (1 Pair)
- Ubiquiti Networks offers a variety of UFiber modules and single-mode fiber cabling for your new installs and existing infrastructure upgrades.
- It's BiDirectional features allows you to maximize your re-use of existing infrastructure by using two different wavelengths
- Ubiquiti Networks offers a variety of UFiber modules and single-mode fiber cabling for your new installs and existing infrastructure upgrades.
- Use single-mode LC FiberCable to build your outdoor fiber network.
Technical Specification
| Supported media | Single-mode fiber |
| Connector type | (1) LC |
| BiDi | Yes |
| TX wavelength* | Blue latch: 1270 nm Red latch: 1330 nm *Must be used in pairs (blue latch and red latch). |
| RX wavelength* | Blue latch: 1330 nm Red latch: 1270 nm *Must be used in pairs (blue latch and red latch). |
| Data rate | 10 Gbps |
| Max. power consumption | 1W |
| Cable distance | 10 km |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
| Pack options | 2-pack, 20-pack |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
